LPG De Odourizing system

Get a Price/Quote

MOQ : 01 Piece

LPG De Odourizing system Specification

Power Rating
3.5 kW

Noise Level
Below 75 dB

Machine Type
Gas Odourizing Equipment

Drive
Direct Coupled

Frequency
50 Hz

Accuracy
1% Odour Residual

Production Capacity
500 kg/hr

Cooling System
Air Cooled

Operating Temperature
5C to 45C

Voltage
415 V

Frame Type
Rugged Skid Frame

Motor Power
2 HP

Control System
PLC Controlled

Product Type
LPG De Odourizing System

Technology
Chemical Absorption/Filtration

Power Source
Electric

Operating Type
Automatic

Power
3 kW

Pressure
2 16 kg/cm

Surface Treatment
Powder Coated

Dimension (L*W*H)
1800 x 900 x 1700 mm

Weight (kg)
850 kg

Color
Industrial Grey

Usage & Applications
LPG Bottling Plants, Industrial Gas Processing

LPG De Odourizing system Trade Information

Minimum Order Quantity
01 Piece

Supply Ability
25 Pieces Per Month

Delivery Time
6 Week

Main Domestic Market
All India

About LPG De Odourizing system

We have successfully constructed an ultra-modern infrastructure unit that has enabled us to manufacture, supply and export MBC Aerosol Filling Machinery. Widely used for filling of aerosol in different tubes, these products have gained a huge popularity among our respected clients in the global market. Owing to their longer service life and low maintenance, these product can be used for a longer running period. Our clients can avail from us MBC Aerosol Filling Machinery in diverse specifications as per their requirements.

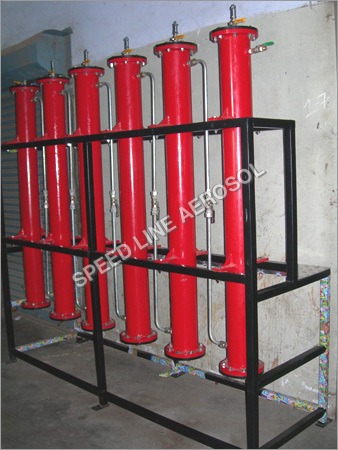

Aerosols De Odourizing Column

Sturdy columns tested at 60 bars
Safety valve to release access pressure
Easy to read line gas pressure
Easy to change absorbant material
No connection/disconnection of joints while changing absorbant material

Advanced Chemical Filtration

Rely on precise chemical absorption and filtration technology to efficiently remove unwanted odorants from LPG. The process occurs within a fully automatic system, ensuring safe and consistent purification at industrial scale. The structure supports various operational requirements and effectively meets industry standards for gas quality.

Reliable and Robust Design

Built with a powder-coated rugged skid frame, this system offers superior resistance to industrial wear and corrosion. Its 1800 x 900 x 1700 mm build and 850 kg weight support stable, continuous operations. The air-cooled mechanism and sound-dampening features keep operation seamless and within safe decibel limits.

User-Friendly and Precise Control

Managed by an advanced PLC-based control system, the de-odourizing process is simple to monitor and regulate. Achieving an odour residual accuracy of 1%, operators experience minimal manual intervention and high consistency, making the system ideal for bottling plants and gas processing applications.

FAQs of LPG De Odourizing system:

Q: How does the LPG De Odourizing System remove odorants from LPG?

A: The system employs advanced chemical absorption and filtration methods to effectively eliminate odorants from LPG. These processes happen within a sealed, automated chamber, ensuring high removal efficiency while maintaining the purity and integrity of the gas.

Q: What are the primary benefits of using this de-odourizing equipment in industrial settings?

A: Key advantages include automatic operation for minimized manual intervention, precise odour residual control (1%), strong production capacity (500 kg/hr), low operating noise (below 75 dB), and robust construction for reliable, long-term use in demanding environments.

Q: When should the system be deployed during the LPG processing cycle?

A: This unit is typically used after the initial gas compression and purification stages but before bottling or distribution. Incorporating it at this point ensures that the final LPG meets quality and regulatory standards for odour content.

Q: Where is this LPG De Odourizing System most commonly installed?

A: It is ideally installed in LPG bottling plants, industrial gas processing sites, or any facility needing bulk LPG purification. Its rugged skid frame allows for stable setup in industrial environments.

Q: What is the operation process and control system for the equipment?

A: Automated via a PLC-controlled interface, the process involves directing LPG through a series of chemical absorption and filtration stages. System parameters such as pressure, temperature, and odour residual are continuously monitored and adjusted as needed for consistent results.

Q: How does the cooling system function, and why is it important?

A: The equipment utilises an air-cooled system to maintain optimal temperatures during operation, protecting internal components from overheating and enhancing overall reliability and operational safety.
